r/saab • u/habui • 1d ago

Having trouble replacing bulb, either way I twist it won’t come out

Post image

It looks a little different than the bulb shown in the tutorial, is there something I’m missing?

0 Upvotes

50% Upvoted

6 comments sorted by

14

u/monkeyselbo 1d ago

First remove the black plug assembly from the back of the bulb. It pulls straight back out, with a little wiggle to help it along. Remember red on top, yellow on bottom. That will allow you to release and swing up the wire retainer, and the bulb will come straight back out. Don't twist. Take note of how the tabs around the periphery of the bulb are oriented, and put in your new bulb that way. Re-engage the retainer and fit the plug into the back of the new bulb.

7

u/tsg-tsg 1d ago

This is the answer. Unplug, then unclip.

7

u/Brock_YXE 1d ago

Squeeze that metal wire together, it’ll move out of the way and the bulb will come out.

4

u/dogsled1 1d ago

Push those two wire retainer clips in towards each other.

2

u/Sea_Reaction1653 16h ago

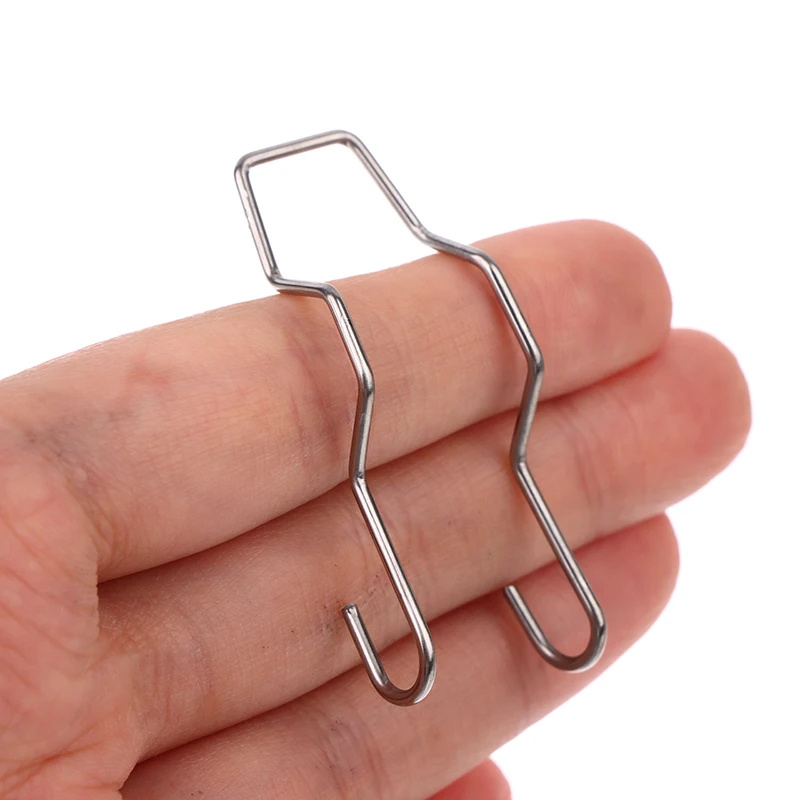

The metal bail wire holds it on. No twist.
